BYO-GPU Requirements
This guide covers the requirements and infrastructure needed to deploy Smart Studio on your own local IDC (Internet Data Center) with your GPU cluster.
Standard Requirements for IDC Deployment
The following CPU and storage servers are required. These servers must be on the same local virtual network as the GPUs.
| No. | Basic Server Configuration | Quantity | Purpose |
|---|---|---|---|
| 1 | CPU: 64 cores, Memory: 128GB, Storage: 1T+ | 3 | Deploy the Kubernetes control plane and Smart Studio platform services (required) |
| 2 | GPU: depends on the local GPU configuration of the customer and the size of the LLM | N | See the Minimum Configuration for Different Model Deployments |

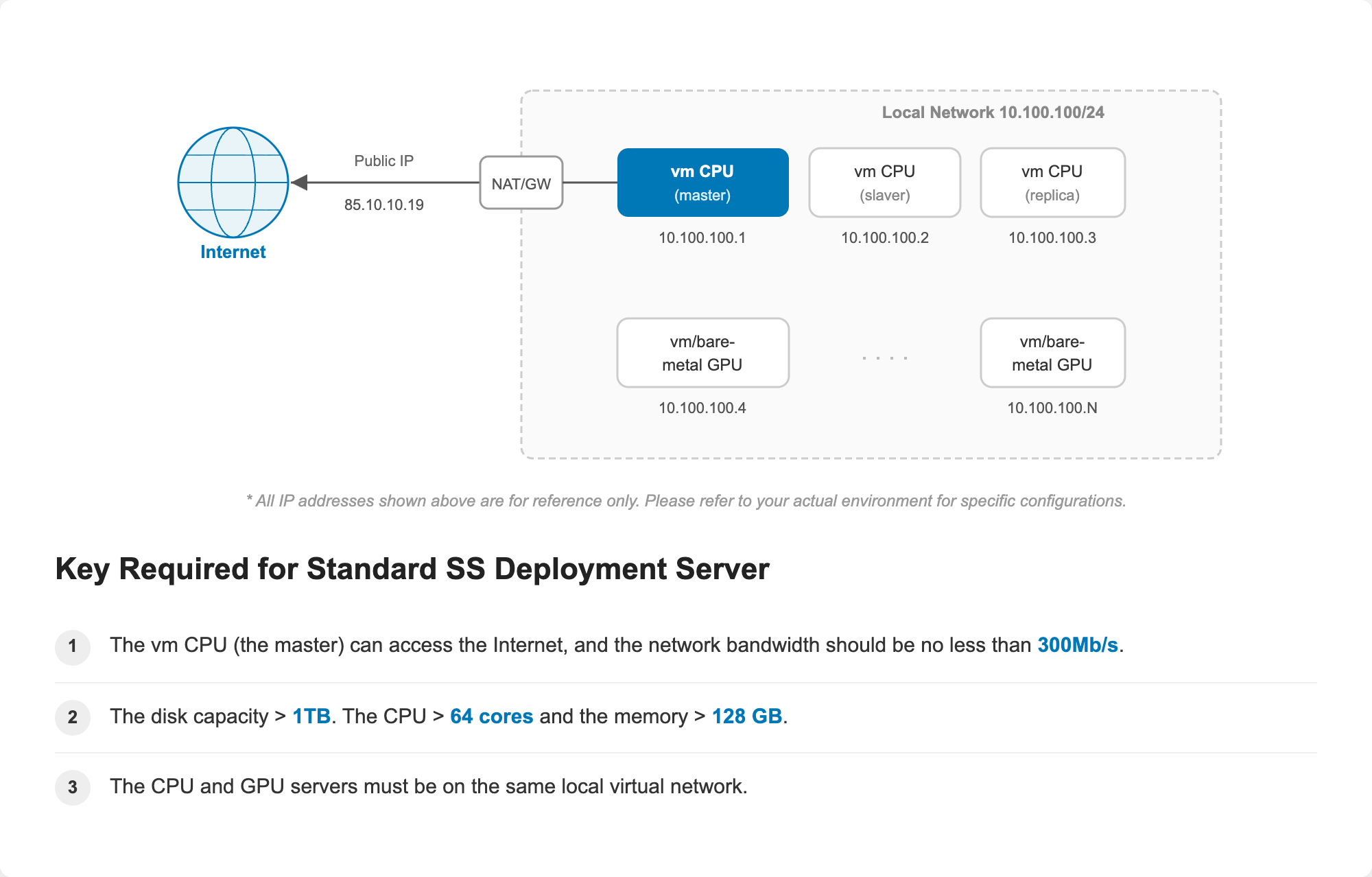

Demo of Network Topology
Minimum Requirements for IDC Deployment (POC)
For a minimal proof-of-concept setup, a single GPU server can be used.
| No. | Basic Server Configuration | Quantity | Purpose |
|---|---|---|---|
| 1 | GPU: H20/H100/H200/RTX PRO 6000, CPU: 128+ cores, Memory: 1TB, Storage: 1T+ | 1 | All services — Kubernetes control plane, CNI, Smart Studio platform, and Model Serving deployed on one GPU server (without HA guarantee) |

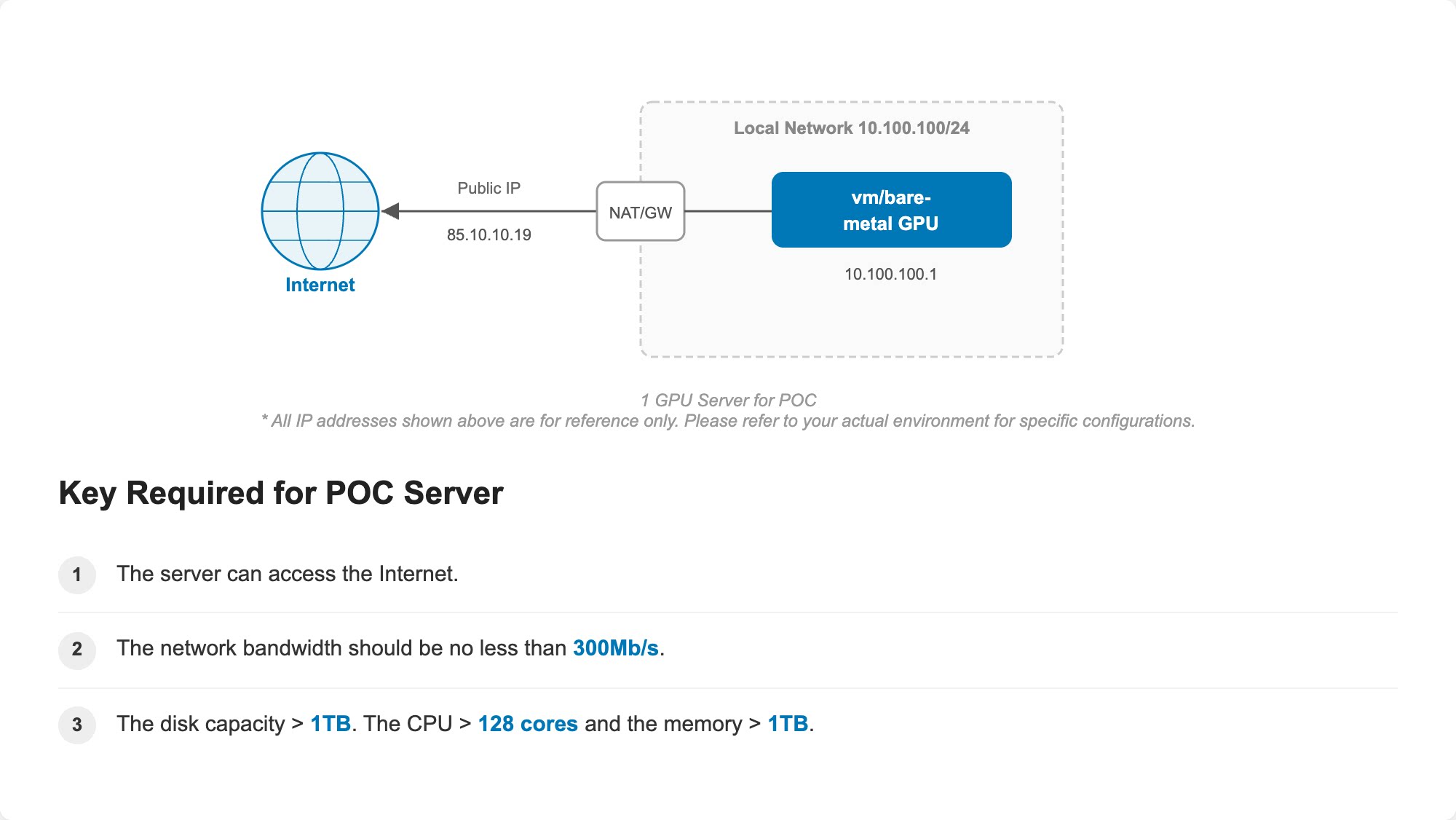

Demo of Network Topology
Minimum Configuration for Different Model Deployments
You can provide your required model name to us, and we will respond with the GPU requirements.
| Model | Minimum Deployment GPU Specification (Estimated) | Memory Pool Base Scale |
|---|---|---|
| Qwen3.6-27B (FP8) / Qwen3.6-35B-A3B (FP8) | 1 Card: H20-96G, H20-141G, A800-80G, or equivalent ≥80G VRAM per card.etc 2 Cards: L20-48G, L40s-48G, or equivalent ≥48G VRAM per card.etc | >1.5T |
| Qwen3.5-397B-A22B (FP8) | 4 Cards: ≥188G VRAM per card 8 Cards: H20-96G, H20-141G, or equivalent ≥80G VRAM per card.etc | >4T |
| Deepseek V4-Flash | 4 Cards: H20-96G, H20-141G, RTX PRO 6000-96G, or equivalent ≥80G VRAM per card.etc | >1T |
| GLM-5.2 (FP8) | 4 Cards: ≥288G VRAM per card 8 Cards: H20-141G, or equivalent ≥141G VRAM per card.etc 16 Cards: H20-96G, or equivalent ≥80G VRAM per card.etc | >8T |
| Qwen3.7-Plus | 8 Cards: H20-141G, H20-96G, or equivalent ≥ 80G VRAM per card.etc (8 Cards is preferred) | >4T |
| Qwen3.7-Max | 8 Cards: ≥288G VRAM per card | >15T |
Note
- Estimations for Qwen3.7-Plus/Max are based on FP8 dtype and may not be fully accurate.
- You are responsible for providing the required GPU resources (purchased or self-owned), as the platform does not include them.
- For more technical details about deployment or other model deployment configurations, please contact us.
Diagram of Infrastructure to Deploy Smart Studio on Local IDC
GPU/CPU infrastructure → Scheduler and Model Serving → Smart Studio control plane
Next Step
Once your infrastructure meets the requirements above, proceed to Activate Cluster to connect your servers and deploy the Smart Studio platform.
